Moonranger is CMU's flagship autonomous lunar rover - designed to fly on Artemis manned missions with NASA and SPACEX.

Problem Statement

The rover lacked a stowage and deployment mechanism that enabled the astronauts to carry and deploy the rover on the lunar surface.

Challenges included the safety and efficiency of carry, the ergonomics of a pressurized space suit and launch load bearing capabilities.

My Contribution

  • User flow to understand critical pain-points

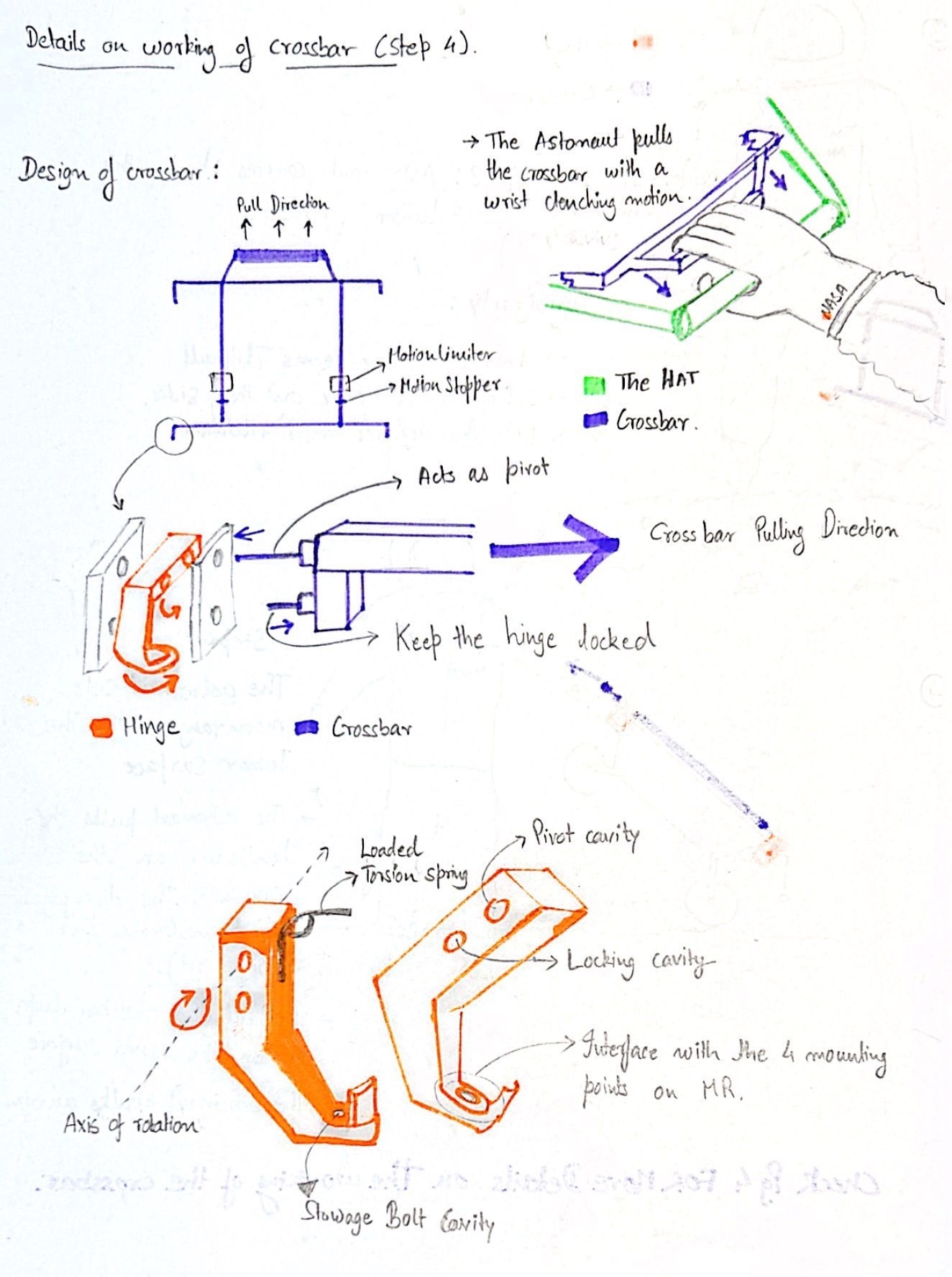

  • Co-designed a novel "hat" with unified lever mechanism to solve the problem of stowage and deployment.

  • Prototyped proof-of-concept using 3D Printing and Laser Cutting

  • Generated technical & design documentation

Impact

  • Demonstrated concept successfully with a working prototype

  • Enhanced astronaut ergonomics & safety

  • Concept was approved by NASA engineers for further R&D

The Process

A deeper dive into the broad steps that were taken to successfully develop the project

A deeper dive into the broad steps that were taken to successfully develop the project

UX Research

Conducted detailed user study - understanding behavior and SOPs of astronauts on a lunar mission and then designed a workflow with intermediate steps.

User Analysis | Storyboarding

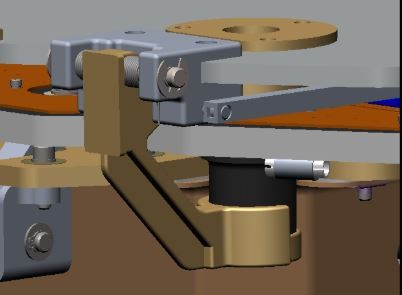

Detailed CAD

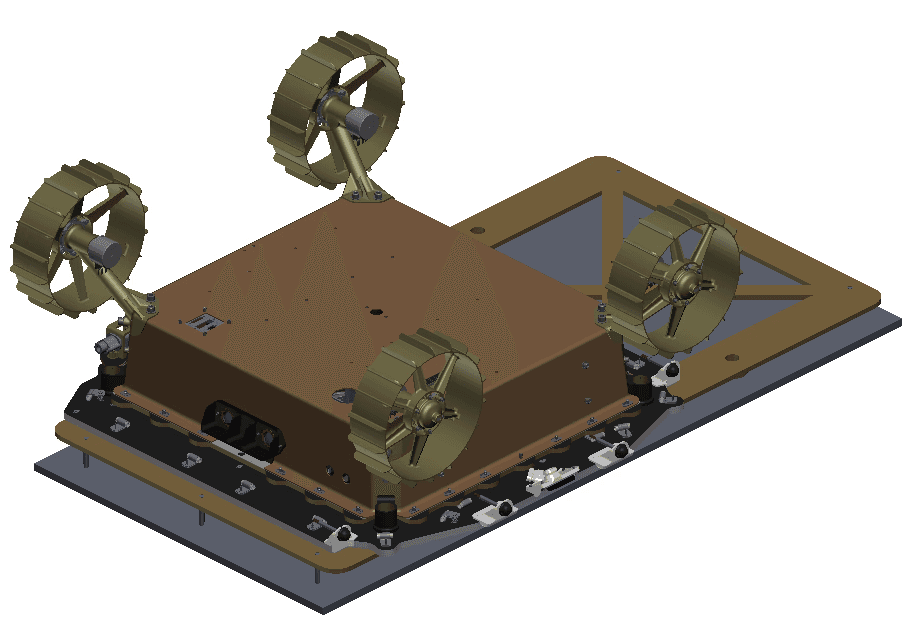

Developed a CAD model with sub-assemblies and conducted 6 design reviews with iterative improvements.

Solidworks | Onshape | Renders

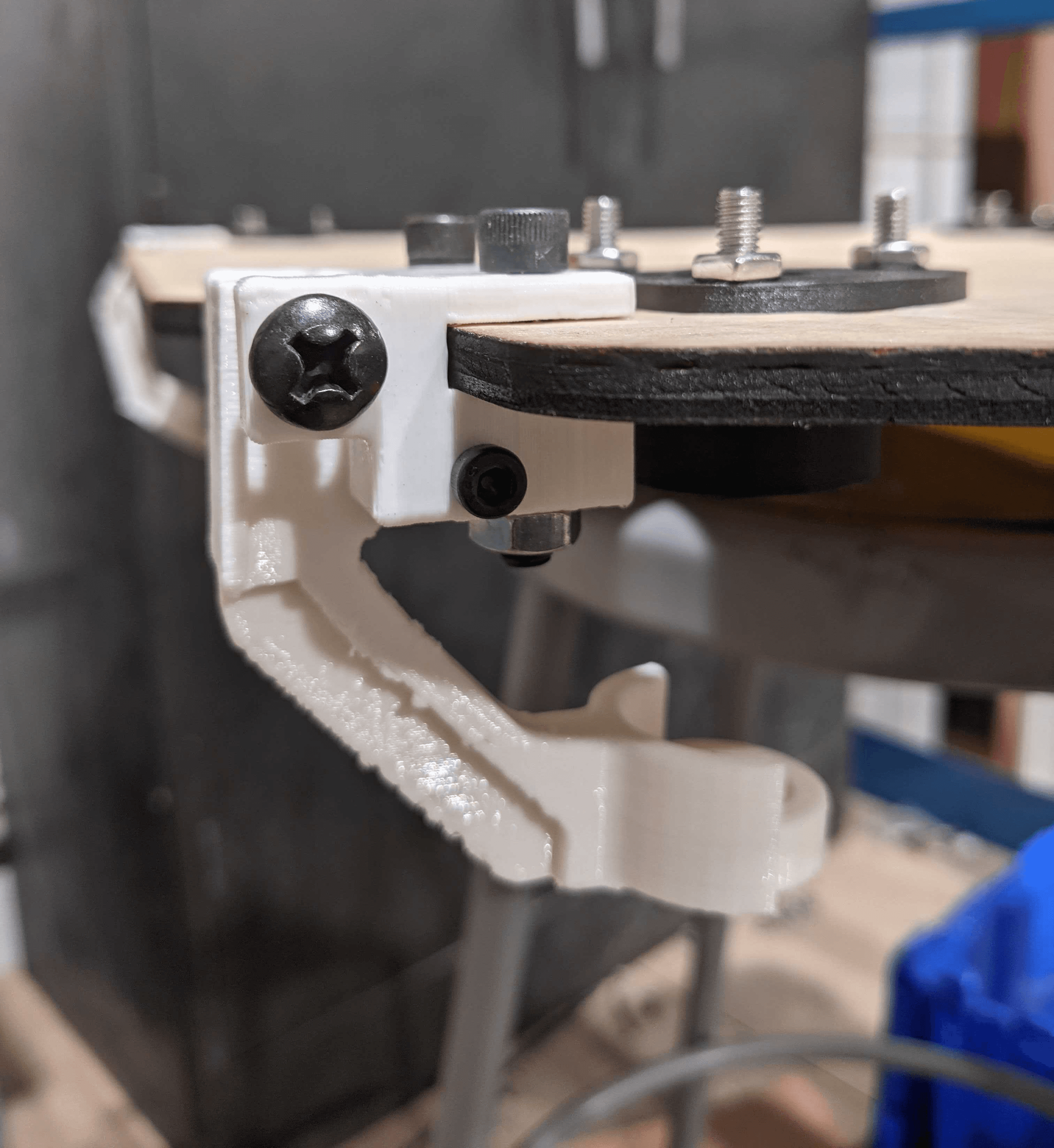

Fabrication

Fabricated the CAD design using rapid prototyping methods and validated functionality.

3D Printing | Laser Cutting | GD&T

Sub System Validation

Tested and validated all individual mechanisms and connections.

3D Printing | Laser Cutting | GD&T

Final

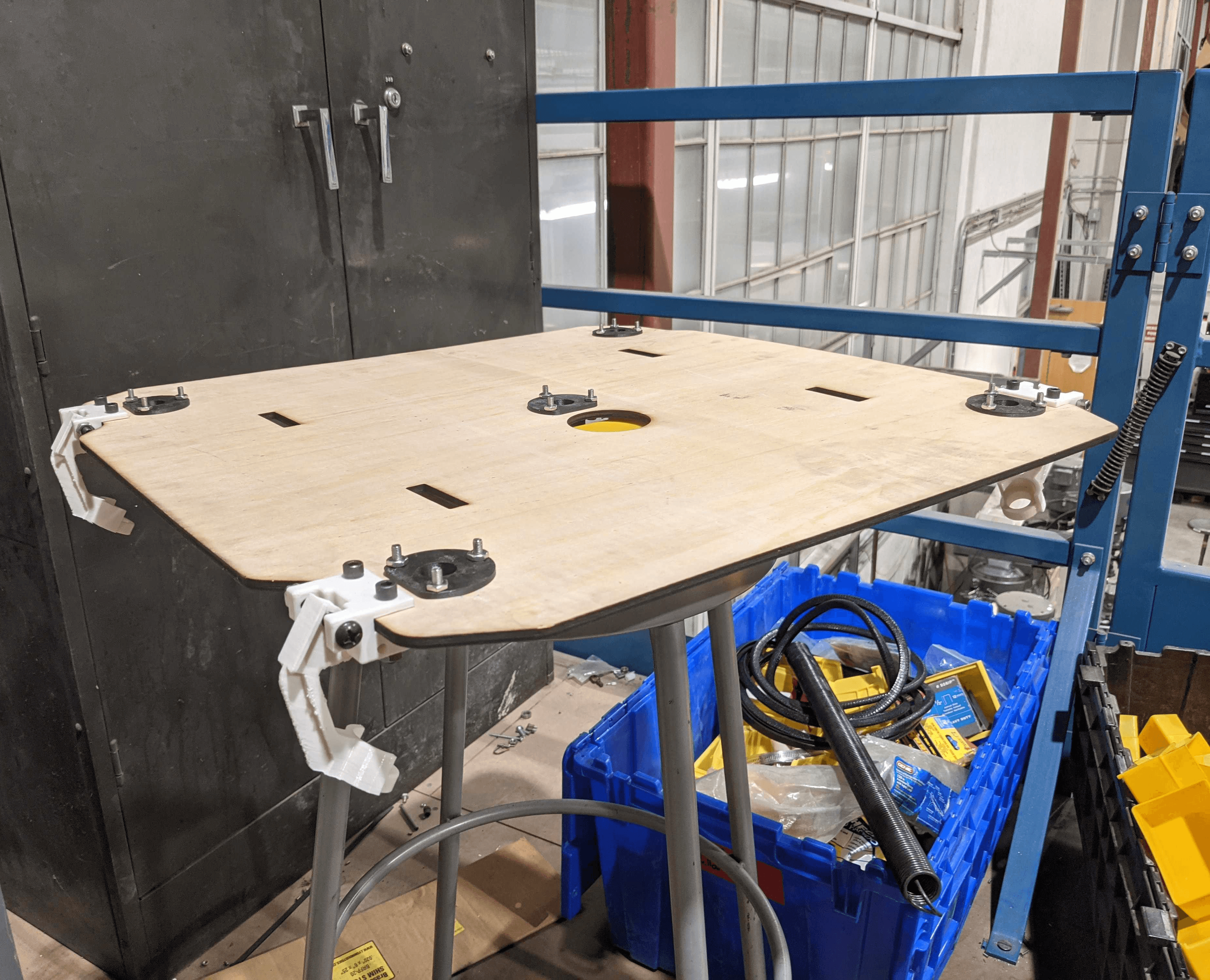

Proof of Concept

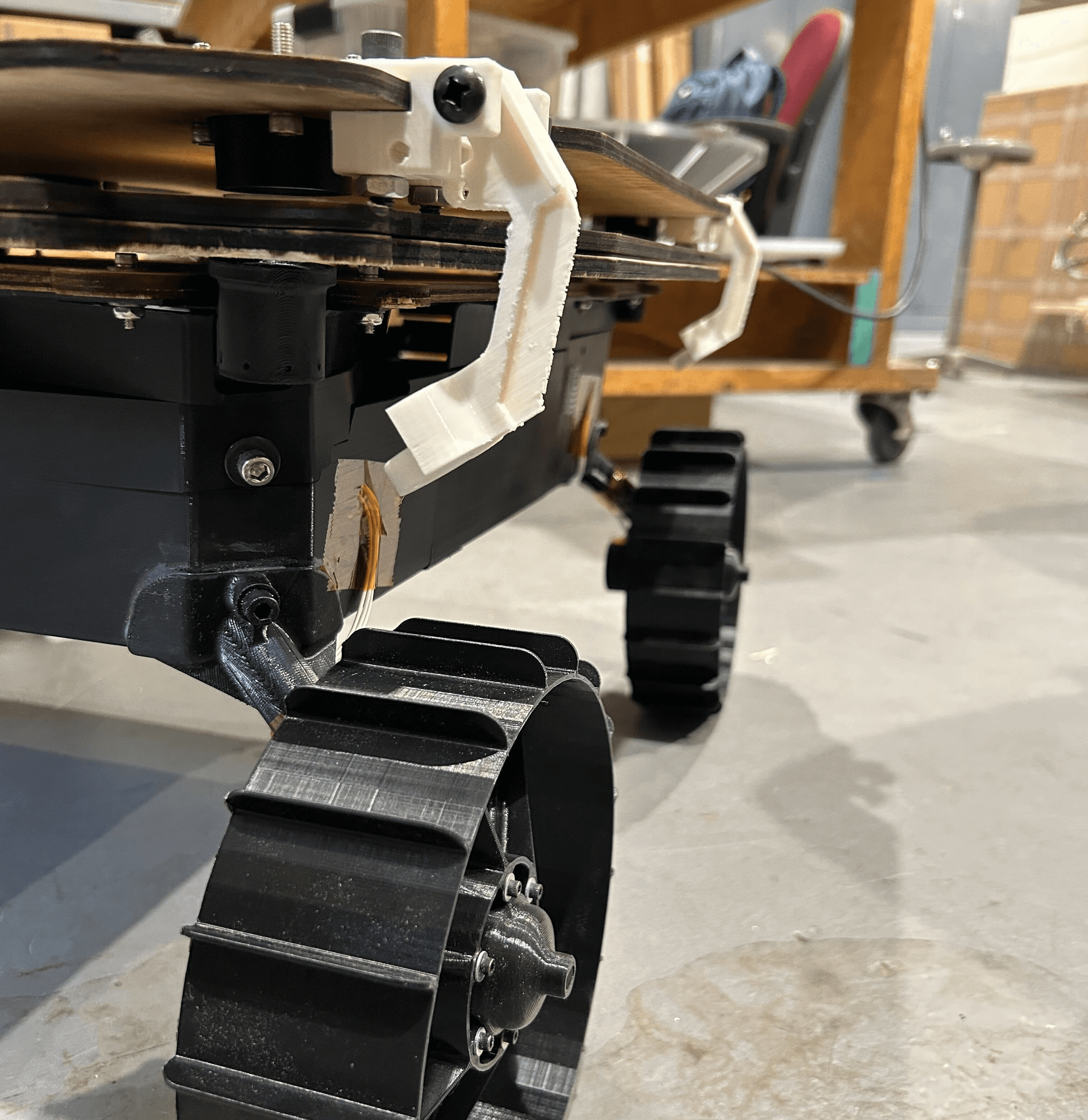

Final Proof of Concept

We developed a working proof of concept which was presented to senior leadership at NASA and was adopted further for R&D.

Technical Design Reviews | Technical Documentation
